Seismic Tomography Surveys in Ipswich – Refraction & Reflection Profiling

Sound ground. Sound decisions.

LEARN MORE

Ipswich sits at the head of the Orwell estuary, roughly 11 metres above ordnance datum with underlying strata shaped by Cretaceous chalk, Crag sand, and London Clay — a layered sequence where velocity contrasts can catch out a standard borehole programme. Seismic tomography fills that gap, producing continuous P-wave velocity sections that reveal bedrock topography, fracture zones, and buried channels invisible to discrete sampling. The technique transmits a seismic pulse from a sledgehammer or weight-drop source and records arrival times across a geophone spread; MASW complements the dataset where shear-wave stiffness governs foundation response, and seismic refraction provides the baseline velocity model for tomographic inversion. Across the borough, from the Waterfront regeneration parcels to infrastructure corridors near the A14, the method reduces exploratory risk and anchors ground models in measured wave-speed data.

Seismic velocity sections resolve buried chalk pinnacles and silt-filled hollows that single boreholes routinely miss — a critical edge on Ipswich's variable drift geology.

Our service areas

Process and scope

Field execution follows BS 5930:2015+A1:2020 and the ground investigation principles of Eurocode 7 (BS EN 1997-2:2007), with particular attention to the low-velocity cover that blankets much of the Gipping valley. A 24- or 48-channel seismograph records first breaks and later arrivals; processing then runs a damped least-squares or simultaneous iterative reconstruction to build a 2D velocity cross-section. In Ipswich, where the chalk surface can undulate by more than 5 metres over short distances, ray coverage must be verified against reciprocal travel times and shot redundancy. Where reflection horizons are needed — for instance to trace the Lambeth Group contact beneath alluvial silts — CPT testing provides a direct tie between cone resistance and seismic velocity, tightening the geological interpretation. Deliverables include tomograms, ray-path density plots, and a geophysical interpretative report that integrates borehole logs and window-sample descriptions.

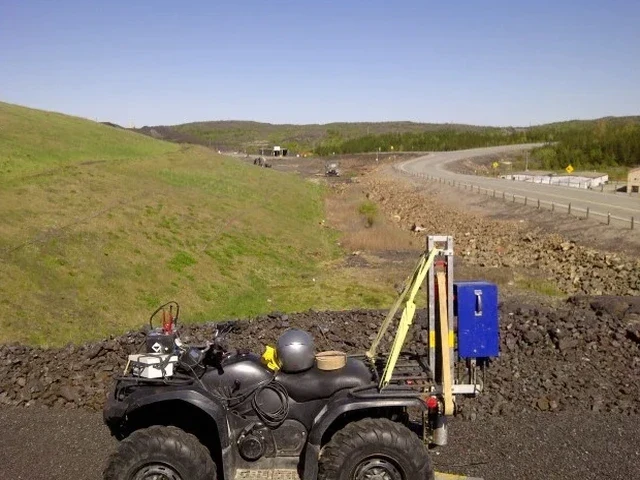

Seismic Tomography Surveys in Ipswich – Refraction & Reflection Profiling
Technical reference — Ipswich

Local considerations

The most persistent mistake on Ipswich sites is treating a single seismic line as a full 3D picture — a single 2D tomogram perpendicular to a buried channel can image the channel walls but miss its axis entirely. The consequence is a false sense of lateral continuity, leading to foundation designs that overlook soft infill or solution features in the chalk. A related pitfall is skipping velocity control: without a downhole or crosshole check shot, tomographic velocities can drift by 10-15%, translating to a 30% error in small-strain stiffness. The team mitigates this by running orthogonal lines wherever access permits and tying results to in-situ permeability data where groundwater flow through fracture networks matters for excavation stability. Grid-based acquisition, reciprocal time checks, and integrated reporting keep the ground model defensible under technical review.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering1.com

Reference standards

BS 5930:2015+A1:2020 – Code of practice for ground investigations, BS EN 1997-2:2007 (Eurocode 7) – Ground investigation and testing, BS EN ISO 22476-1:2012 – Geotechnical investigation by field testing, A Guide to the Use of Geophysical Methods in Engineering Geology (Geological Society, London)

Reference parameters

ParameterTypical value
Source typeAccelerated weight-drop or sledgehammer with striker plate
Geophone spread24-48 channels, 1-5 m spacing depending on target depth
Recording system24-bit seismograph, 0.25 ms sampling interval
Depth of investigation (refraction)Typically 15-40 m with 60-120 m spread length
Tomographic inversionGradient or grid-based, damped least-squares or SIRT algorithm
Velocity range expected (Ipswich)400-800 m/s fill/alluvium; 1,600-2,400 m/s Crag/Chalk
Deliverables format2D velocity tomograms, ray coverage plots, DXF sections, factual & interpretative report

Frequently asked questions

How deep can seismic tomography see in Ipswich's geology?

Refraction tomography with a 115-metre spread and a weight-drop source typically reaches 35-40 metres in the Crag and Chalk sequence, though depth is controlled by velocity contrasts and source energy. Reflection profiling can image horizons at 80-100 metres when the acoustic impedance contrast is strong, such as the top of the chalk beneath thick London Clay.

What does a seismic tomography survey cost for a typical Ipswich site?

A single 2D refraction tomography line with full processing and an interpretative report generally runs between £2,160 and £4,160, depending on spread length, source type, and access constraints. Multi-line or combined refraction-reflection campaigns are quoted on a project basis after reviewing the site layout and investigation objectives.

How does seismic tomography compare with borehole investigations?

Seismic tomography provides continuous lateral coverage at a fraction of the time of a dense borehole grid, but it measures geophysical properties — wave speed — not lithology directly. The strongest ground models come from tying tomograms to even a single logged borehole or CPT sounding, so the two methods are complementary rather than alternatives.

Can tomography detect solution features in the Ipswich chalk?

Yes, low-velocity zones within the chalk mass are a key target. Infilled pipes or dissolution hollows show up as velocity lows of 800-1,200 m/s surrounded by competent chalk at 2,000+ m/s. Orthogonal survey lines are recommended to constrain the three-dimensional geometry of any anomaly detected in reconnaissance profiling.
