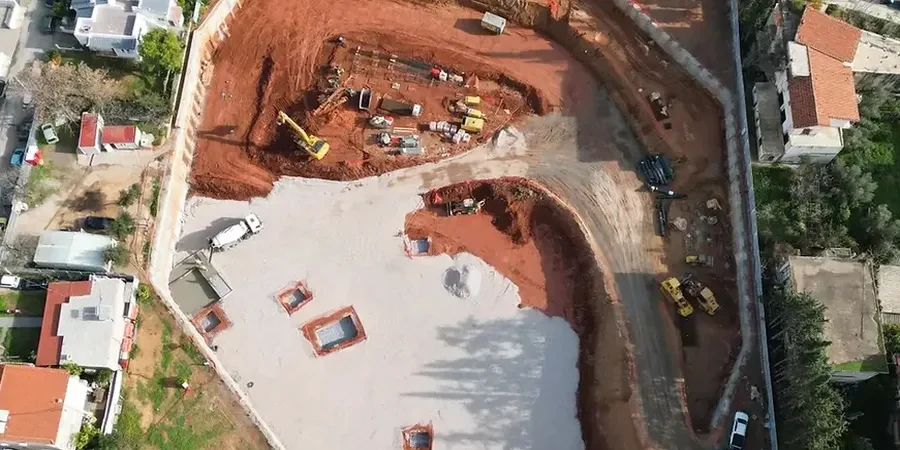

Geotechnical Design of Deep Excavations in Ipswich

The contrast between Ipswich's historic Waterfront district and the northern Claydon Hills is more than aesthetic—it defines the city's excavation risk profile. Near the Orwell estuary, soft alluvium and tidal mudflats sit above a transitional zone where the underlying London Clay meets the sandy facies of the Lambeth Group. A few kilometres north, the Gault Formation and thick chalky boulder clays present entirely different shoring demands. This variability means a deep basement at the University of Suffolk campus demands a fundamentally different retention strategy than a cut-and-cover tunnel in the Ravenswood development area. The local geology mirrors Ipswich's own layered history: Roman deposits, medieval river silts, and Victorian industrial fill all appear within a few metres of the surface, complicating the in-situ permeability profile needed for dewatering system design.

In Ipswich's layered drift geology, the real art of deep excavation design is controlling base heave in the Gault Clay before the slab pour even begins.

Our service areas

Process and scope

The analytical backbone of a deep excavation design in Ipswich relies on finite element modelling calibrated with site-specific parameters. Our team uses Plaxis 2D and 3D with the Hardening Soil small-strain model, fed by triaxial test data from local boreholes. The input suite includes effective cohesion intercepts of 0–5 kPa for the weathered Gault and stiffness moduli reflecting the overconsolidated nature of Anglian glacial till. A typical Ipswich project in the town centre requires modelling the sequential lowering of strut levels while tracking horizontal displacements against the movements predicted for the adjacent 19th-century masonry buildings. The analysis accounts for surcharge loads from the busy A1156 corridor and the cyclic vibration effects of the Felixstowe rail branch line. Output is benchmarked against the observational method prescribed in CIRIA C760, ensuring the modelled performance aligns with actual as-built behaviour.

Geotechnical Design of Deep Excavations in Ipswich — Technical reference — Ipswich

Local considerations

A 15-metre excavation on Princes Street encountered a sand lens within the Red Crag formation that hadn't appeared on the preliminary borehole logs. Within two hours of penetrating the confining clay layer, the base of the pit began piping fine sand, carrying groundwater at a rate that overwhelmed the initial sump pumps. The adjacent Grade II listed timber-framed building—founded on shallow brick footings—showed differential settlement of 8 mm before the emergency recharge well array stabilised the external piezometric levels. This scenario illustrates why a solid geotechnical design in Ipswich must anticipate the discontinuous, channelised sand bodies within the otherwise cohesive strata, and why a contingency plan for base grouting or deep recharge wells is not optional, but a fundamental design deliverable from day one.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering1.com

Reference standards

BS 5930:2015+A1:2020 – Code of practice for ground investigations, BS EN 1997-1:2004 (Eurocode 7) – Geotechnical design – General rules, BS EN 1997-2:2007 (Eurocode 7) – Ground investigation and testing, CIRIA C760 – Guidance on embedded retaining wall design, CIRIA C517 – Temporary works for excavations

Reference parameters

Parameter	Typical value
Maximum excavation depth assessed (urban centre)	25 m below street level
Primary wall system for Waterfront sites	Secant piled wall (hard/soft)
Groundwater control method	Deep well system with vacuum assistance
Design standard for wall deflection limits	BS EN 1997-1:2004 (EC7 DA1)
Typical undrained shear strength of London Clay at depth	75–150 kPa
3D modelling software used	Plaxis 3D Ultimate
Critical infrastructure surcharge consideration	Anglian Water deep trunk mains

Frequently asked questions

How much does a geotechnical design for a deep excavation cost in Ipswich?

The design fee for a deep excavation in Ipswich typically ranges from £1,610 to £7,340, depending on the depth of the cut, the complexity of the groundwater regime, and the number of adjacent structures requiring a settlement assessment. A straightforward single-level basement in competent glacial till sits at the lower end, while a multi-strutted excavation in the Orwell alluvium with a full 3D building damage assessment reaches the upper range.

Which retaining system works best in Ipswich's London Clay?

Secant piled walls often provide the most reliable solution in Ipswich's London Clay, particularly where the water table is high and the clay is fissured. The hard/soft pile arrangement allows for a watertight interlock while the inherent stiffness of the reinforced piles controls lateral movement. In the Waterfront area, where the clay transitions to silty Lambeth Group deposits, a contiguous piled wall with a jet grout curtain behind it can offer better economy while still meeting the CIRIA C760 deflection limits for protecting the historic quay walls.

How does the observational method apply to Ipswich excavation projects?

The observational method, as structured by CIRIA C760 and BS EN 1997-1, is particularly well-suited to Ipswich because of the unpredictability of the glacial and fluvial deposits. The design establishes trigger values for wall deflection and groundwater drawdown. During construction, continuous inclinometer and piezometer monitoring feeds back into the model: if the wall movement at Christchurch Park approaches the amber trigger, the contingency plan—perhaps a row of additional props or a switch from passive to active dewatering—is activated without delay. This keeps the design economical while maintaining safety.
