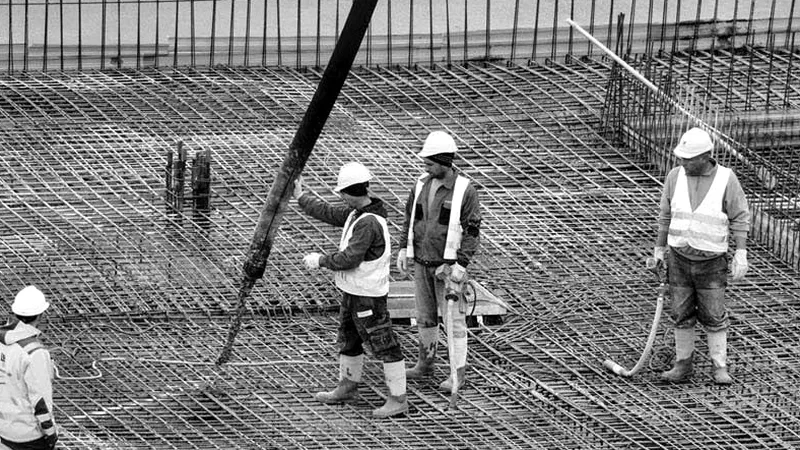

Raft Foundation Design in Ipswich: Ground Engineering for Cohesive Soils

A four-storey residential block near the Ipswich Waterfront recently required a complete foundation redesign after trial pits exposed a lens of soft alluvium at 2.8 metres depth, overriding the stiffer Kesgrave Sand member. The site straddles the geological transition that defines much of central Ipswich—where the Gault Formation outcrops beneath a patchy veneer of Pleistocene drift deposits. Designing a raft here means reconciling variable compressibility across a single footprint, and the solution came through a calibrated SPT investigation that profiled the undrained shear strength at 1.5-metre intervals before the structural engineer fixed the rib spacing. Raft or mat foundations are the logical choice in Ipswich when differential settlement threatens conventional strip footings, because the integrated slab bridges soft spots while distributing column loads across the full plan area. The design process moves from a detailed desk study of the British Geological Survey sheet through to finite element modelling of soil-structure interaction, always anchored by site-specific parameters obtained from boreholes sunk in accordance with BS 5930:2015+A1:2020.

On the Gault Clay beneath Ipswich, a properly sized raft eliminates the differential settlement that would crack masonry within the first five years of service.

Process and scope

The fieldwork phase opens with a tracked window sampler rig that can access rear gardens and tight infill plots where larger cable percussion equipment cannot manoeuvre—a common constraint in Ipswich’s Victorian terraced streets and the dense housing estates around Chantry. Undisturbed U100 samples are extracted from the cohesive strata and sealed immediately to preserve moisture content for the oedometer consolidation tests that define the mv and cv parameters essential to raft settlement calculations. In the laboratory, each specimen undergoes incremental loading up to 400 kPa while the technician logs time-deformation curves for every load step, building the constrained modulus profile that feeds into the elastic settlement analysis. The plate load test module on site provides a direct bearing capacity verification at formation level, typically executed on the exposed glacial till after bulk excavation reaches the designed underside of the raft. These field-testing data sets are then combined with the triaxial effective stress parameters—c' and φ'—derived from consolidated-undrained tests with pore pressure measurement, creating the input deck for the serviceability limit state checks required by Eurocode 7, specifically BS EN 1997-1:2004+A1:2013.

Local considerations

The local practice in Ipswich has taught us that underestimating the shrink-swell potential of the weathered Gault Clay zone—the upper 1.2 to 1.8 metres—leads to seasonal edge lift that cannot be arrested by thickening the raft edge beam alone. The BRE Digest 240 methodology guides the classification, but the real safeguard is a suction-controlled oedometer test that quantifies the heave pressure directly. Another recurring issue involves buried chalk solution features in the northern parishes toward Westerfield; these dissolution pipes create localised soft spots that a uniform raft thickness cannot accommodate without a ground improvement pre-treatment such as permeation grouting. A detailed ground investigation that extends at least one raft width beyond the building footprint catches these anomalies before they become change orders during construction.

Reference standards

BS EN 1997-1:2004+A1:2013 (Eurocode 7: Geotechnical design – General rules), BS 5930:2015+A1:2020 (Code of practice for ground investigations), BS 8500-2:2015+A2:2019 (Concrete – complementary British Standard to BS EN 206), BRE Special Digest 1:2005 (Concrete in aggressive ground), CIRIA C760 (Guidance on embedded retaining wall design)

Reference parameters

Parameter	Typical value
Design approach	DA1 Combination 1 and 2 per UK National Annex to BS EN 1997-1
Bearing capacity verification method	Analytical (Brinch Hansen) with numerical validation (FEM)
Settlement analysis	Elastic half-space with strain influence factor (Schmertmann method)
Concrete grade range	C30/37 to C40/50, exposure class XC2 typical for Ipswich
Subgrade modulus derivation	From plate load test or back-calculated from oedometric modulus (D₃₀)
Minimum soil cover to reinforcement	75 mm with sulfate-resisting cement where BRE SD1 class DS-2 applies

Frequently asked questions

What does raft foundation design cost for a typical Ipswich residential project?

For a single dwelling or small apartment block in Ipswich, the combined ground investigation, laboratory testing, and foundation design package ranges from £940 to £3,660. The spread reflects the number of boreholes required and whether a plate load test is needed at formation level. Complex sites near the Orwell estuary with soft alluvium tend toward the upper end due to additional consolidation testing.

Is a raft foundation suitable for the Gault Clay found across Ipswich?

Yes, and in many cases it is the preferred solution. The Gault Clay in the Ipswich area is an overconsolidated stiff clay with moderate bearing capacity—typically 150 to 250 kPa allowable—but its shrink-swell behaviour demands a raft design that includes a suspended floor or compressible void former beneath the slab to accommodate seasonal volume changes. The structural engineer and geotechnical designer must coordinate the heave protection details.

How is the subgrade reaction modulus determined for a raft design?

We derive the modulus of subgrade reaction (ks) by two complementary methods. The direct approach uses an on-site plate load test at foundation level, applying incremental pressure while recording settlement. In parallel, we back-calculate ks from the oedometric constrained modulus using the relationship ks = Es / [B·(1-ν²)] with an appropriate shape factor. The higher of the two values is never used alone; we adopt the lower bound for safety in the structural model.

What thickness does a raft foundation need for a two-storey house in Ipswich?

For a typical two-storey masonry dwelling on the glacial till or Kesgrave Sands of Ipswich, the raft slab thickness generally falls between 250 mm and 350 mm, with edge beams deepening to 600–900 mm. The exact dimensions come from the punching shear check at column locations and the bending moment envelope from the soil-structure interaction analysis. Heavier construction, such as a concrete frame with large glazed facades, may push the slab thickness above 400 mm at the ribs.
